Parametric Assembly Design & Animation Services

We provide Parametric Assembly Design & Animation Services. In here the main product assembly is divided into sub assemblies having specific functions. The sub-assemblies are constituted of parts or further sub-assemblies. The top level parameters control the main design intent/characteristics desired & any changes there in are propagated to further sub-assemblies & parts through appropriate referencing & relations. This approach also known as top-down approach is helpful in quick updation of complete assembly on changes in parameters & the updation happens quickly with little or no manual rework in the model. Reusability of such data for any further version of the product is an added advantage.

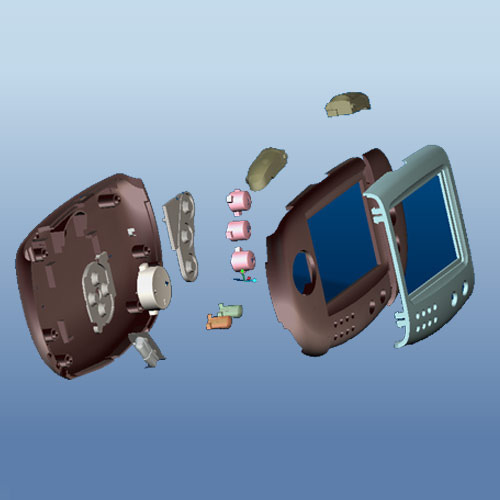

The solid virtual part models created are assembled with meaningful constraints & even interface type in virtual environment, interferences, clearance, unintentional crossing over of features, mismatch of profiles between mating parts can all be well checked & ensured to be as per designers intent. Motions intended can be animated. Our completed projects include weaving mechanism, floor cleaning machine, semi-auto shelf platform module etc.
